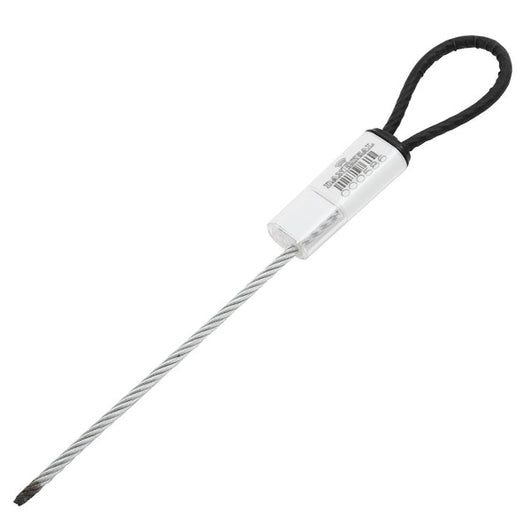

The DanEseal is a passive electronic UHF Security Seal that boasts long distance RFID reading and cost-effective single trip use.
Product Details
The DanEseal data can be retrieved via RFID reader. The newest model is capable of reading the data at a distance of more than 10 meters. Part of the design feature of the product's antenna, is the capability of the UHF tag to be read from multiple directions. The quick reading capacity of the DanEseal gives it the feature of having the ability of being read rapidly from terminal gates that have RFID readers installed. The key benefit of using an RFID security sealing system, is that speedy verification fast tracks shipments and instantly reveals the status of the seal's security level.
Features
- Readable up to 10 meters distance by either handheld or mobile RFID reader.
- Unique tamper detecting loop with kill tag option
- Tag is programmable with all details regarding the shipment
- Passive sealing device - no battery
- Fast and accurate electronic reading of seal data
- Inexpensive compared to other electronic seal solutions
- “H“ High Security certified according to ISO17712:2013 and C-TPAT
- Disposable seal - one time use
Passive RFID Seal 5.0 mm UHF Technical Specification
RF protocol - Air interface standards global operational frequency:
EPC global, EPC Class-1 Gen-2 passive UHF RFID 860 MHz to 960 MHz − ISO/IEC 18000-6
Integrated Circuit (IC):
NXP’s UCODE G2iM+; Read/Write;
Protection:
128-bit EPC Tag and seal tamper alarm, 96-bit Tag Identifier TID. 48-bit factory unique serial number. Read protection, Write lock, Access password, User password, User memory 320-bits IP44
Operating temp:
-20 °C to +70 °C
Storage temp:
-20 °C to +70 °C
Tag dimension:
20 x 52 mm
Reading distance 2 Watt ERP:
5-10 m on metal cargo container EU. 8 m
30 ft on metal cargo container US.
Resistance:
Harsh factory environment
Weight:
69 grams with 35 cm wire
Seal dimension:
68 x 25 x 15 mm
H x W x D
