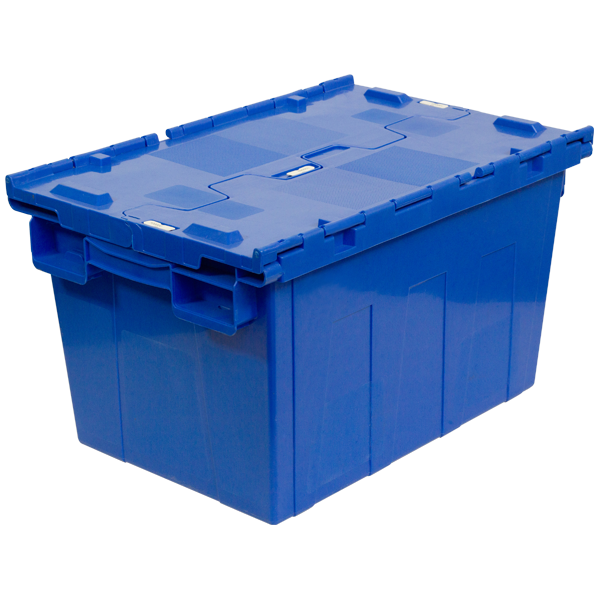

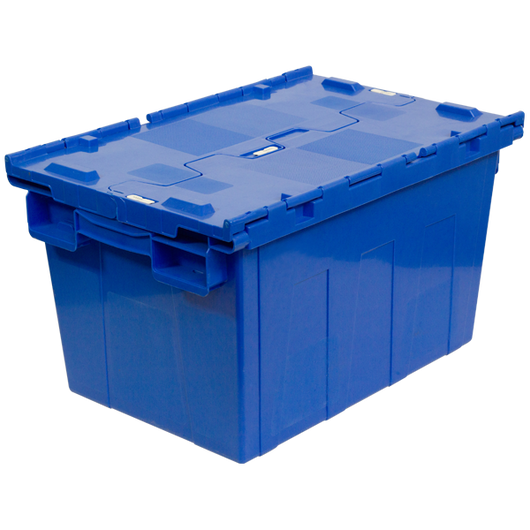

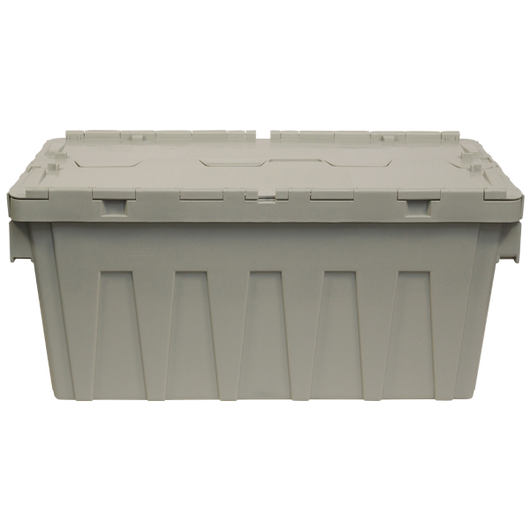

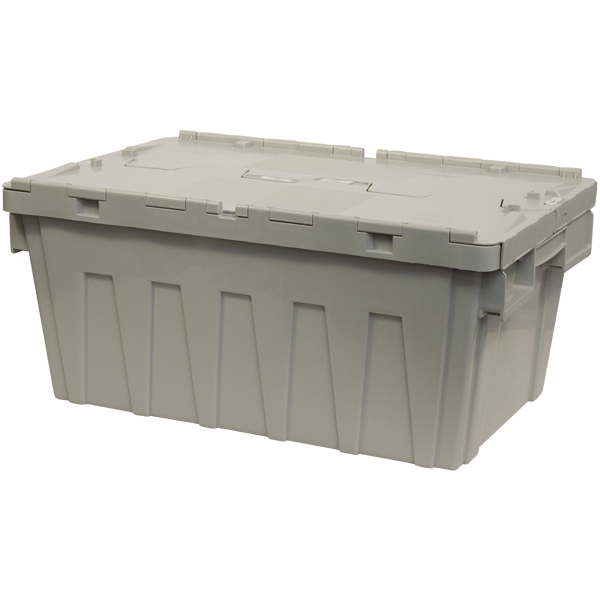

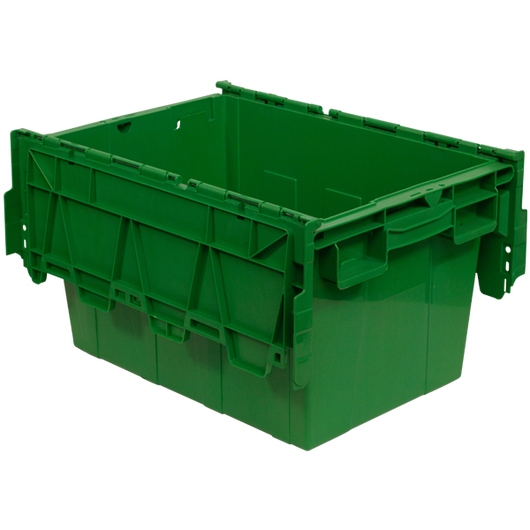

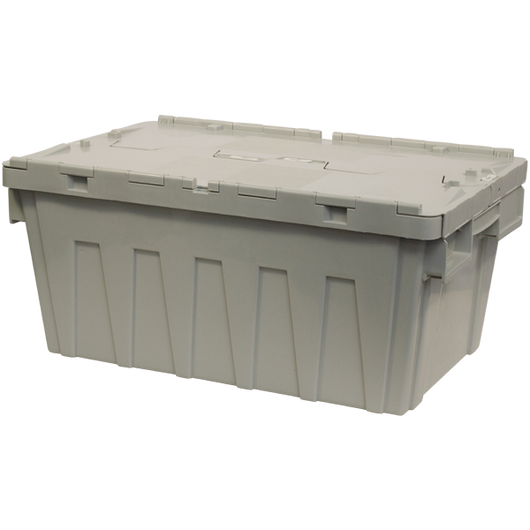

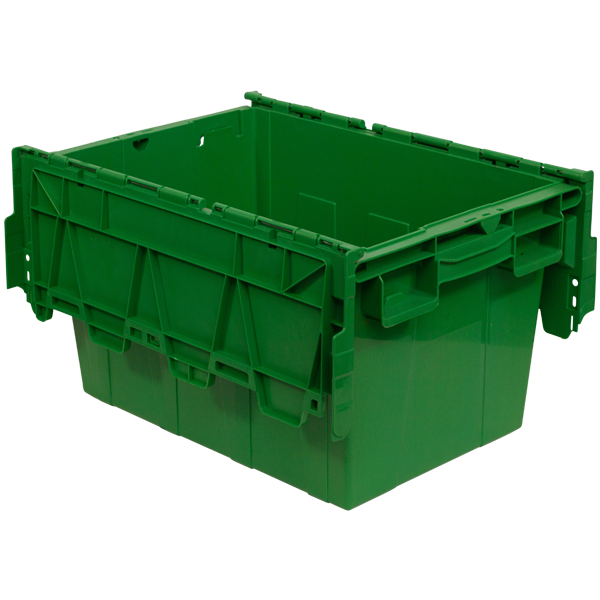

Custom Security Sealing Crate

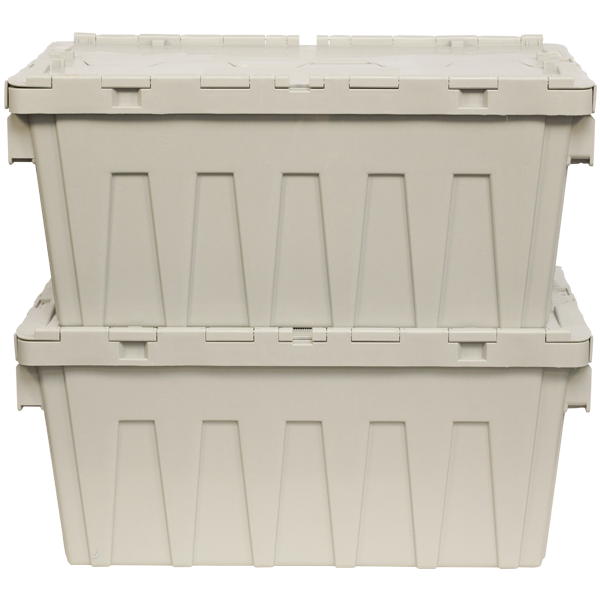

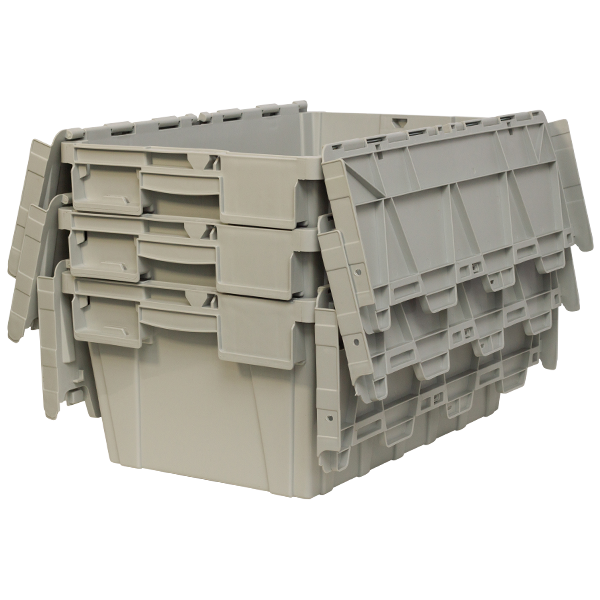

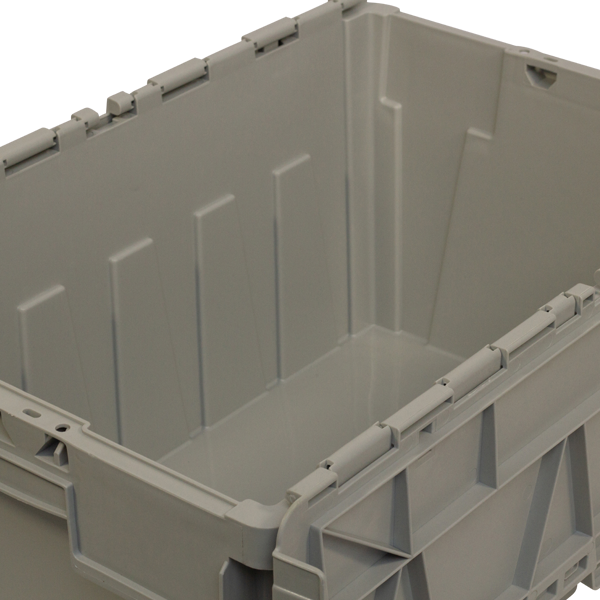

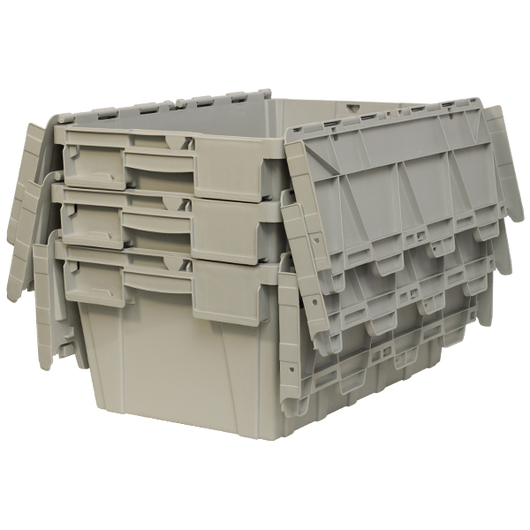

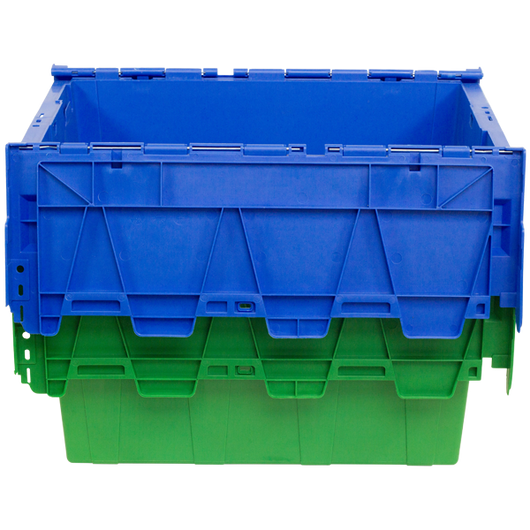

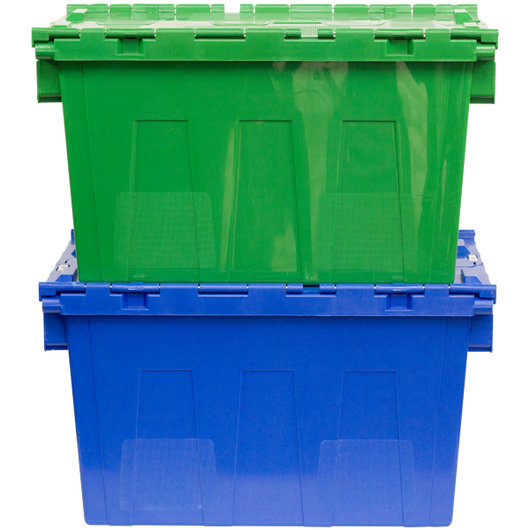

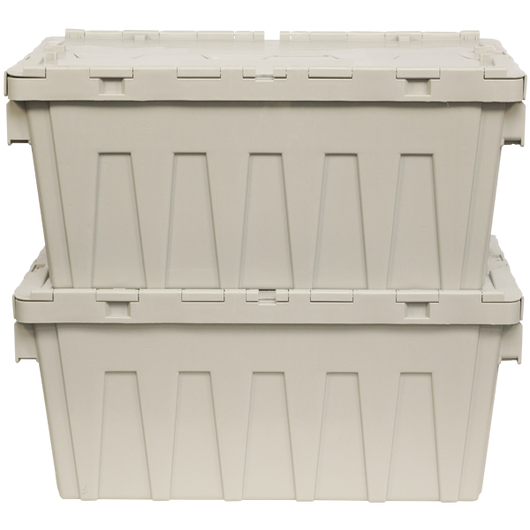

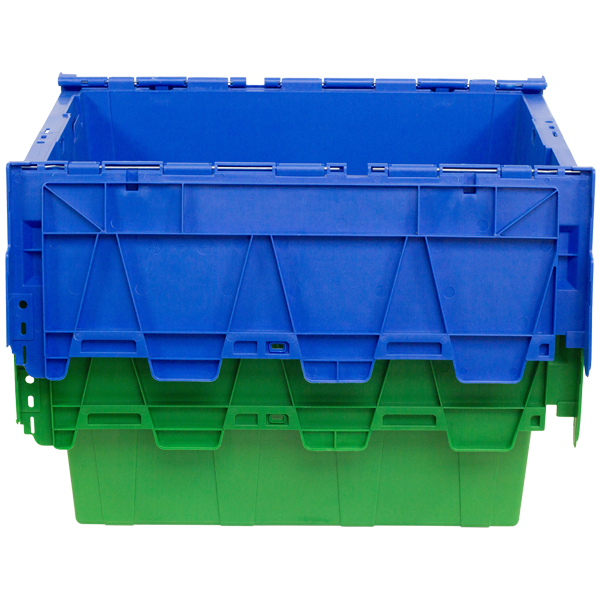

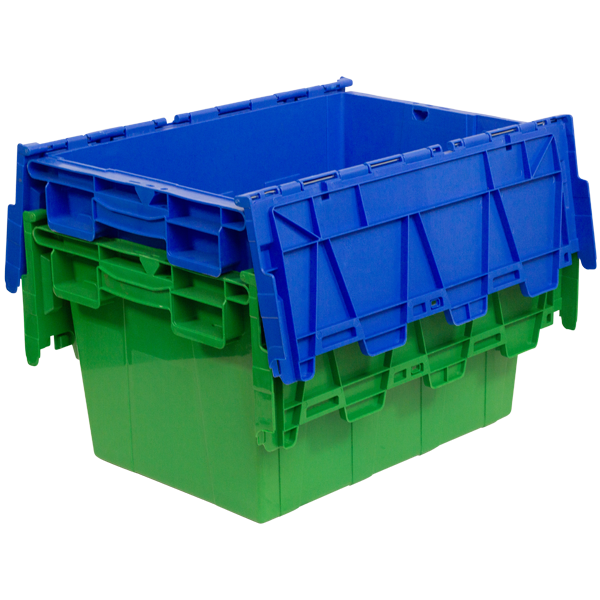

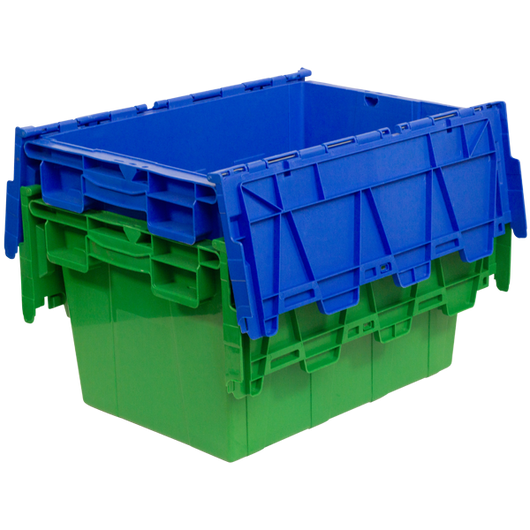

This crate is built for efficient storage, transport, and security. It stacks when full and nests when empty to save space in warehouses and truck trailers, and it can be used with accessories like tamper evident security seals. The non-skid lid keeps stacked crates stable, while ergonomic handles make carrying comfortable. A reinforced base adds durability and protects products, with optional side wall holes available for ventilation. For added security, the crate includes sealing points for numbered tamper evident security seals that clearly show if the crate has been opened. It also features a label area so labels can be added or removed easily.

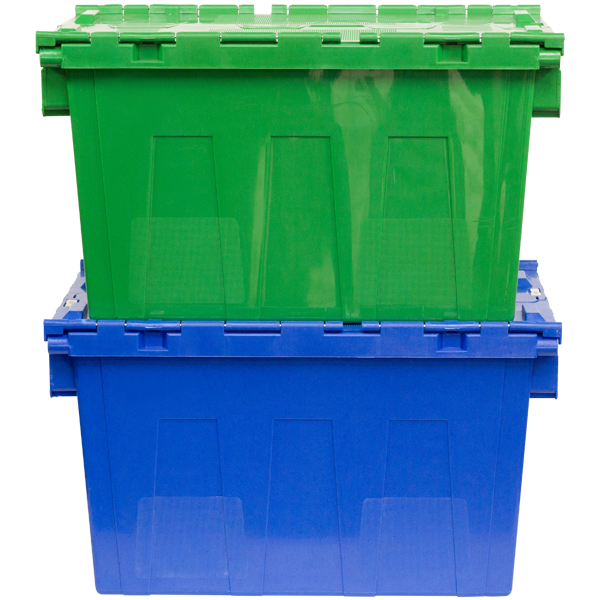

Custom options include different sizes and colours such as white, yellow, orange, blue, and green. Logos, QR codes, RFID tags, and barcodes can also be added upon request.

The standard model HSS TBX560380320 includes three sealing points, while the larger models, such as the HSS TBX600400260, come with four sealing points.

See Product Detail

First name

Last name

Phone Number

Company Name

Your Country

State

Your Enquiry

Download Spec Sheet

Features

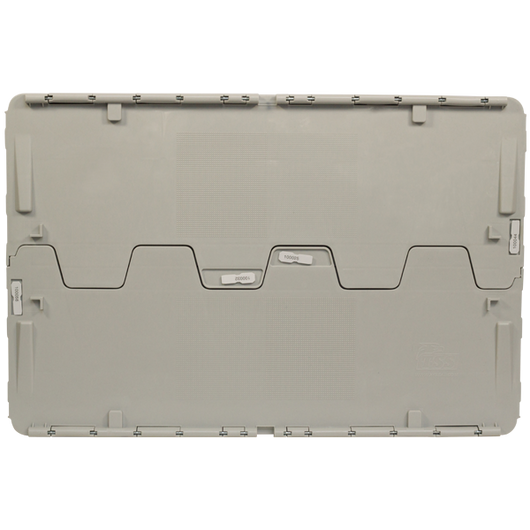

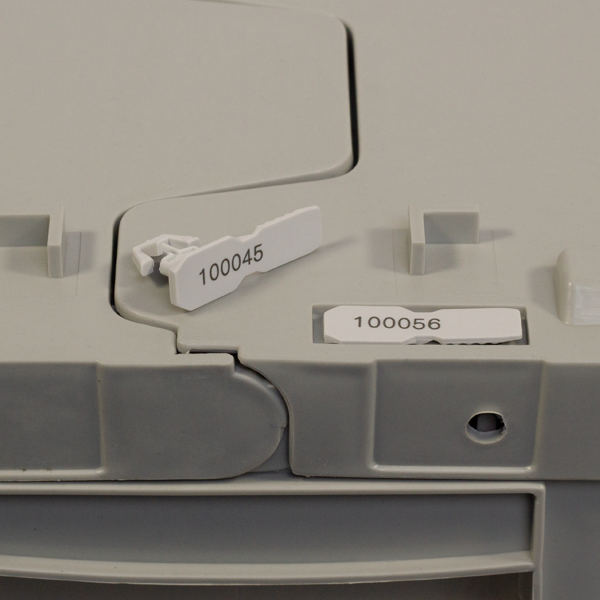

Security: Crate can be sealed with numbered tamper‑evident security seals, making any tampering visible.
Safety: Non-Skin lid improves the stacking capacity of the empty crates and helps secure heavy loads.
Comfort: Ergonomically designed handles for easy carrying

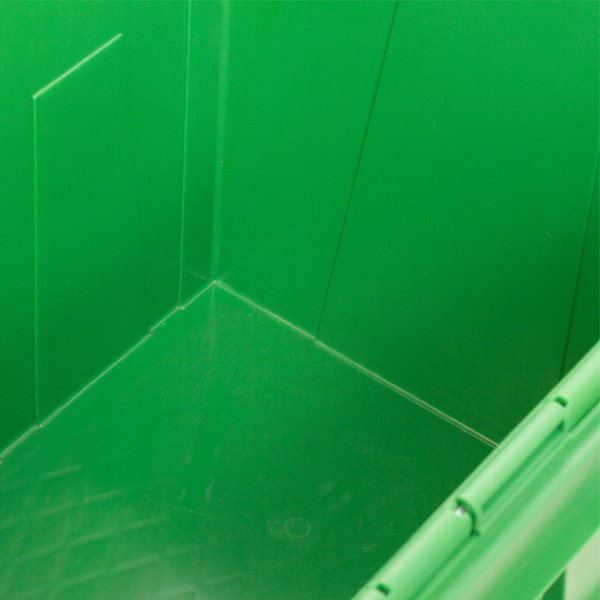

Durable: Reinforced base prevents product damage when stacking and supports heavy loads.
Label area: Quick release label area on the list allows for labels to be easily removed and replaced.

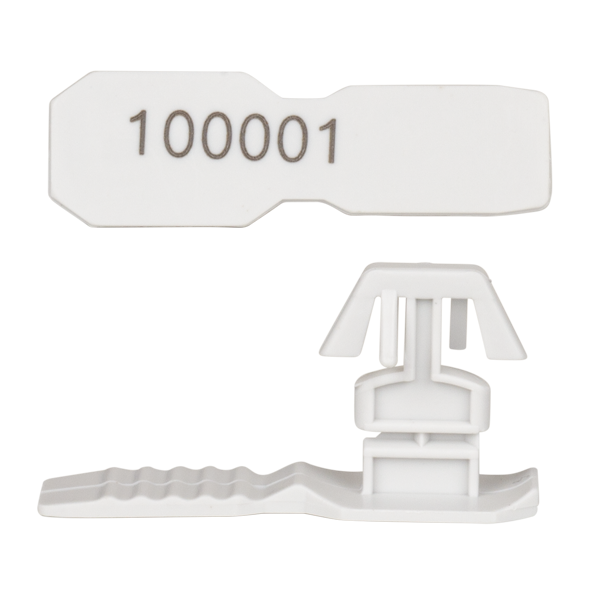

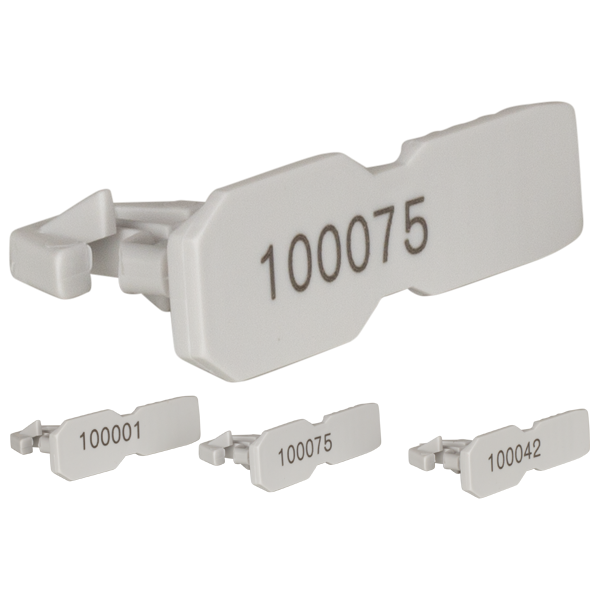

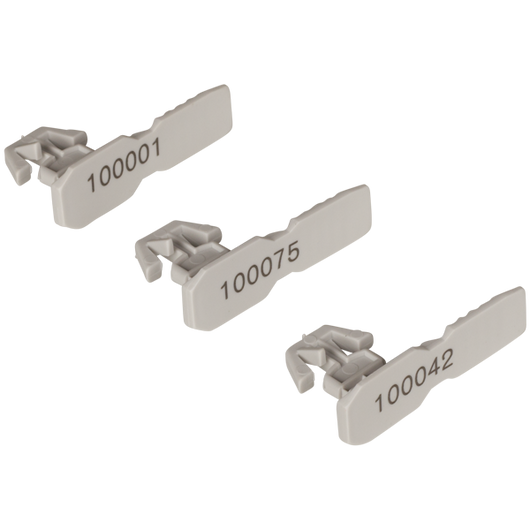

Crate Security Seal Specifications (HSS-FS01):

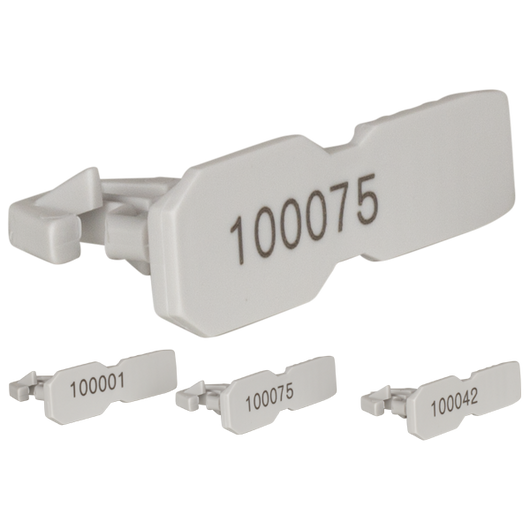

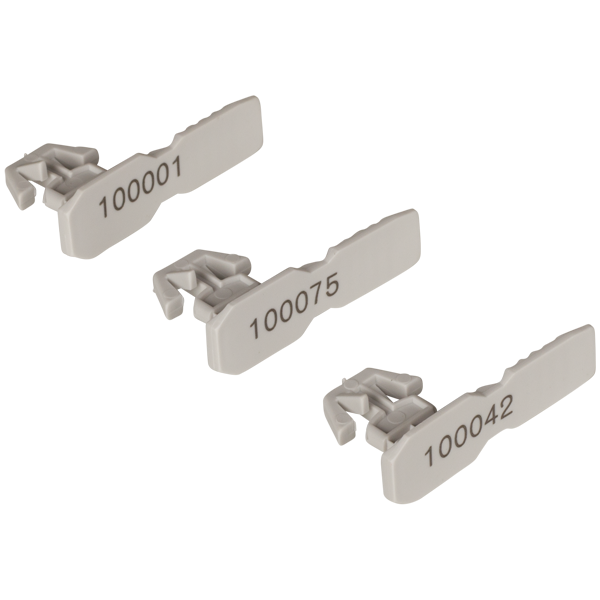

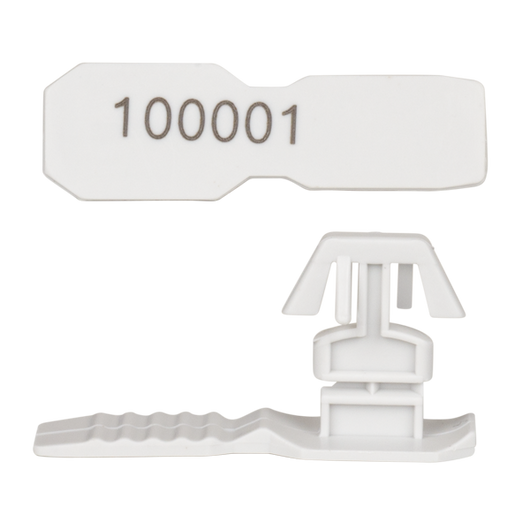

The crate seal is made from durable polypropylene (PP) and is designed for single‑use, tamper‑evident protection. It has an overall length of 38.7 mm and a flag size of 38.7 × 12 mm for clear visibility. These seals are available in a range of colours: white, yellow, orange, blue, green and grey, making it easy to identify.

Model HSS- TBX560×380×320

Outside dimensions: 565×380×320 mm (top), 465×310 mm (bottom)

Inside dimensions: 510×340×300 mm (top), 457×302 mm (bottom)

Material: PP

Weight: 2.6 kg

Capacity: 45 L

Load capacity (single): 30 kg

Load capacity (stack): 200 kg

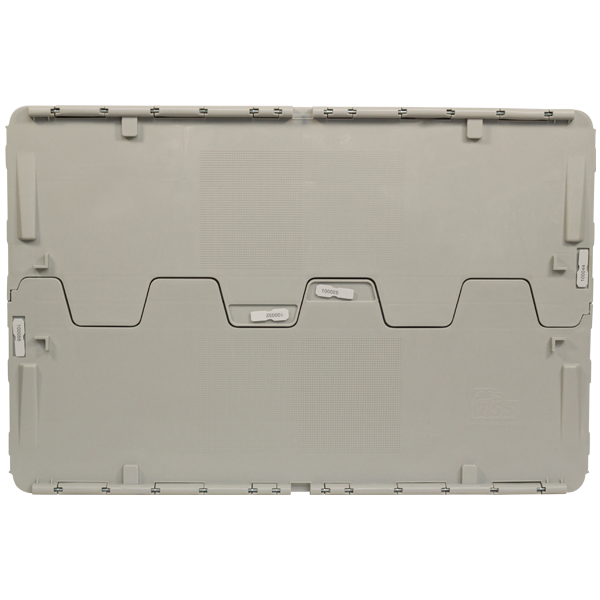

Sealing points: This model includes three sealing points

Model HSS-TBX600×400×260

Outside dimensions: 600×400×260 mm (top), 520×320 mm (bottom)

Inside dimensions: 555×366×240 mm (top), 510×310 mm (bottom)

Material: PP

Weight: 3.0 kg

Capacity: 45 L

Load capacity (single): 30 kg

Load capacity (stack): 200 kg

Sealing points: This larger model includes four sealing points.

Model HSS-TBX600×400×320

Outside dimensions: 600×400×320 mm (top), 520×320 mm (bottom)

Inside dimensions: 555×366×300 mm (top), 510×310 mm (bottom)

Material: PP

Weight: 3.1 kg

Capacity: 50 L

Load capacity (single): 40 kg

Load capacity (stack): 200 kg

Sealing points: This model also includes four sealing points.

Minimum Order

The minimum order quantity for special colours is 1,000 units. For stock colours, lower minimums apply, please contact us for more information.

Standard customisation includes crate marking and identification. Custom sizing requires the creation of a new mould and would be quoted separately; for this reason, we recommend selecting a standard size where possible.

Let us know the dimensions you are looking for, as we offer a wide range of crates that may already meet your requirements. Contact us today to discuss your options.
